import os
os.environ["CUDA_DEVICE_ORDER"] = "PCI_BUS_ID"
os.environ["CUDA_VISIBLE_DEVICES"] = ""
os.environ["XLA_PYTHON_CLIENT_PREALLOCATE"] = "false"
os.environ["XLA_PYTHON_CLIENT_ALLOCATOR"] = "platform"

import jax
jax.config.update('jax_default_device', 'cpu')
jax.config.update('jax_default_matmul_precision', 'highest')

Testing Observation Masking

This notebook tests that the observation masking feature works correctly for both Factor Analysis (FA, static mode) and Dynamic Factor Analysis (DFA) across all training methods: EM, VBEM, and Blocked Gibbs.

Key tests: - FA: mask=None vs mask=all-True produce identical results; masked training matches subset training - DFA: random masking and partial time-varying masking with all methods - All tests use full settings: ARD priors, PX, and BMR

import jax.numpy as jnp
import jax.random as jr
import matplotlib.pyplot as plt
import seaborn as sns

from sppcax.models import BayesianDynamicFactorAnalysis as BDFA, BayesianFactorAnalysis as BFA

ERROR:2026-03-16 17:53:22,702:jax._src.xla_bridge:473: Jax plugin configuration error: Exception when calling jax_plugins.xla_cuda12.initialize()
Traceback (most recent call last):
  File "/home/dima/.conda/envs/sppcax/lib/python3.13/site-packages/jax/_src/xla_bridge.py", line 471, in discover_pjrt_plugins
    plugin_module.initialize()
    ~~~~~~~~~~~~~~~~~~~~~~~~^^
  File "/home/dima/.conda/envs/sppcax/lib/python3.13/site-packages/jax_plugins/xla_cuda12/__init__.py", line 328, in initialize
    _check_cuda_versions(raise_on_first_error=True)
    ~~~~~~~~~~~~~~~~~~~~^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/home/dima/.conda/envs/sppcax/lib/python3.13/site-packages/jax_plugins/xla_cuda12/__init__.py", line 285, in _check_cuda_versions
    local_device_count = cuda_versions.cuda_device_count()
RuntimeError: jaxlib/cuda/versions_helpers.cc:113: operation cuInit(0) failed: CUDA_ERROR_NO_DEVICE
WARNING:2026-03-16 17:53:22,710:jax._src.xla_bridge:850: An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.

Part 1: Factor Analysis (Static Mode)

Generate synthetic FA data: N samples, D dimensions, K factors.

key = jr.PRNGKey(0)
K = 3   # latent factors
D = 10  # observation dimensions
N = 200 # number of samples

# True parameters
key, *subkeys = jr.split(key, 4)
C_true = jr.normal(subkeys[0], (D, K))
R_true_diag = jr.uniform(subkeys[1], (D,), minval=0.3, maxval=1.0)

# Generate data: y = C @ z + noise
key, subkey = jr.split(key)
z_true = jr.normal(subkey, (N, K))
key, subkey = jr.split(key)
Y_fa = z_true @ C_true.T + jr.normal(subkey, (N, D)) * jnp.sqrt(R_true_diag)

print(f"FA data shape: {Y_fa.shape}")

# Create a random mask: 30% missing
key, subkey = jr.split(key)
mask_fa = jr.bernoulli(subkey, p=0.7, shape=(N, D))
print(f"Mask shape: {mask_fa.shape}, fraction observed: {mask_fa.mean():.2f}")

FA data shape: (200, 10)
Mask shape: (200, 10), fraction observed: 0.70

1.1 Regression test: mask=None vs mask=all-True

These should produce identical results.

num_iters = 20

# FA model with full settings: ARD, PX, BMR

# --- EM ---
fa_model = BFA(K, D)
key, subkey = jr.split(key)
init_params_em, props_em = fa_model.initialize(subkey, variational_bayes=False)

key, subkey = jr.split(key)
params_no_mask, elbos_no_mask = fa_model.fit_em(
    init_params_em, props_em, Y_fa, subkey, num_iters=num_iters
)

fa_model = BFA(K, D)
params_all_mask, elbos_all_mask = fa_model.fit_em(
    init_params_em, props_em, Y_fa, subkey, mask=jnp.ones((N, D), dtype=bool), num_iters=num_iters
)

print("EM regression test:")
print(f"  ELBO diff (last): {abs(elbos_no_mask[-1] - elbos_all_mask[-1]):.6f}")
print(f"  Max ELBO diff:    {jnp.max(jnp.abs(elbos_no_mask - elbos_all_mask)):.6f}")

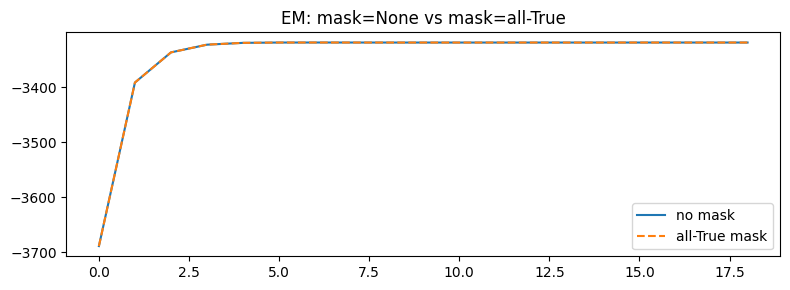

fig, ax = plt.subplots(1, 1, figsize=(8, 3))
ax.plot(elbos_no_mask, label="no mask")
ax.plot(elbos_all_mask, '--', label="all-True mask")
ax.set_title("EM: mask=None vs mask=all-True")
ax.legend()
plt.tight_layout()

EM regression test:
  ELBO diff (last): 0.002441
  Max ELBO diff:    0.076416

# --- VBEM ---
key, subkey = jr.split(key)
init_params_vb, props_vb = fa_model.initialize(subkey, variational_bayes=True)


fa_model = BFA(K, D)
key, subkey = jr.split(key)
params_vb_no_mask, elbos_vb_no_mask = fa_model.fit_vbem(
    init_params_vb, props_vb, Y_fa, subkey, num_iters=num_iters
)

fa_model = BFA(K, D)
params_vb_all_mask, elbos_vb_all_mask = fa_model.fit_vbem(
    init_params_vb, props_vb, Y_fa, subkey, mask=jnp.ones((N, D), dtype=bool), num_iters=num_iters
)

print("VBEM regression test:")
print(f"  ELBO diff (last): {abs(elbos_vb_no_mask[-1] - elbos_vb_all_mask[-1]):.6f}")
print(f"  Max ELBO diff:    {jnp.max(jnp.abs(elbos_vb_no_mask - elbos_vb_all_mask)):.6f}")

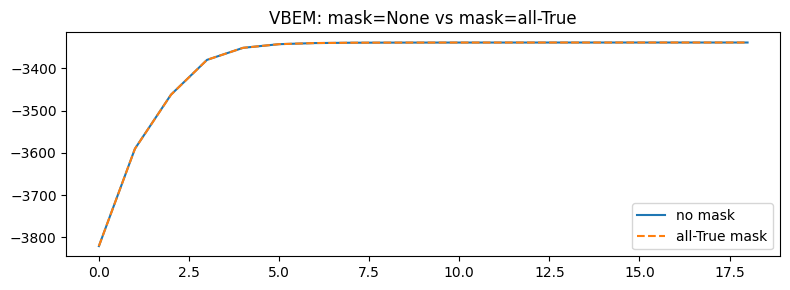

fig, ax = plt.subplots(1, 1, figsize=(8, 3))
ax.plot(elbos_vb_no_mask, label="no mask")
ax.plot(elbos_vb_all_mask, '--', label="all-True mask")
ax.set_title("VBEM: mask=None vs mask=all-True")
ax.legend()
plt.tight_layout()

VBEM regression test:
  ELBO diff (last): 0.000488
  Max ELBO diff:    0.239746

# --- Gibbs ---
key, subkey = jr.split(key)
init_params_gibbs, props_gibbs = fa_model.initialize(subkey)

key, subkey = jr.split(key)
fa_model = BFA(K, D)
params_gibbs_no_mask, elbos_gibbs_no_mask = fa_model.fit_blocked_gibbs(
    subkey, init_params_gibbs, props_gibbs, sample_size=50, emissions=Y_fa
)


fa_model = BFA(K, D)
params_gibbs_all_mask, elbos_gibbs_all_mask = fa_model.fit_blocked_gibbs(
    subkey, init_params_gibbs, props_gibbs, sample_size=50, emissions=Y_fa,
    mask=jnp.ones((N, D), dtype=bool)
)

print("Gibbs regression test:")
print(f"  ELBO diff (last): {abs(elbos_gibbs_no_mask[-1] - elbos_gibbs_all_mask[-1]):.6f}")

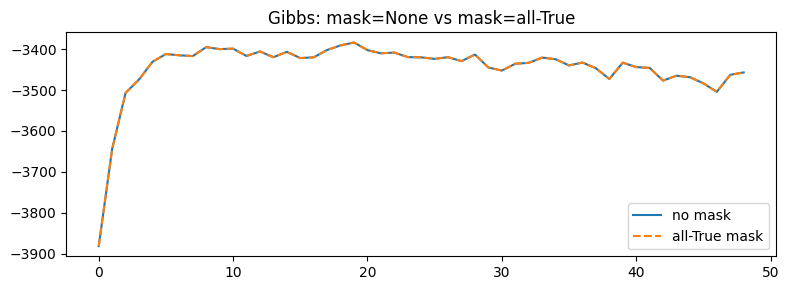

fig, ax = plt.subplots(1, 1, figsize=(8, 3))
ax.plot(elbos_gibbs_no_mask[1:], label="no mask")
ax.plot(elbos_gibbs_all_mask[1:], '--', label="all-True mask")
ax.set_title("Gibbs: mask=None vs mask=all-True")
ax.legend()
plt.tight_layout()

Gibbs regression test:
  ELBO diff (last): 0.006836

1.2 FA: Masked training vs subset training

For FA (static mode), masking certain dimensions for certain samples should give similar results to training only on the observed entries. We compare by masking a subset of dimensions and training with the mask vs training on only the fully-observed subset.

# Strategy: mask the last 3 dimensions for the first 250 samples
# Then the "subset" training uses only the first 7 dims for those samples
# and all 10 dims for the remaining 250

num_iters = 20


# Let's mask dims 7,8,9 for all samples → equivalent to training on dims 0-6 only
mask_partial = jnp.ones((N, D), dtype=bool)
mask_partial = mask_partial.at[:, 7:].set(False)

# Subset: only use first 7 dimensions
Y_subset = Y_fa[:, :7]
Y_masked = Y_fa * mask_partial

fa_model_full = BFA(K, D, use_ard=True, use_px=True)
fa_model_sub = BFA(K, 7, use_ard=True, use_px=True)

# --- EM with mask ---
key, subkey = jr.split(key)
init_full, props_full = fa_model_full.initialize(subkey, variational_bayes=False)

key, subkey = jr.split(key)
params_masked, elbos_masked = fa_model_full.fit_em(
    init_full, props_full, Y_masked, subkey, mask=mask_partial, num_iters=num_iters
)

# --- EM with subset ---
key, subkey = jr.split(key)
init_sub, props_sub = fa_model_sub.initialize(subkey, variational_bayes=False)

key, subkey = jr.split(key)
params_subset, elbos_subset = fa_model_sub.fit_em(
    init_sub, props_sub, Y_subset, subkey, num_iters=num_iters
)

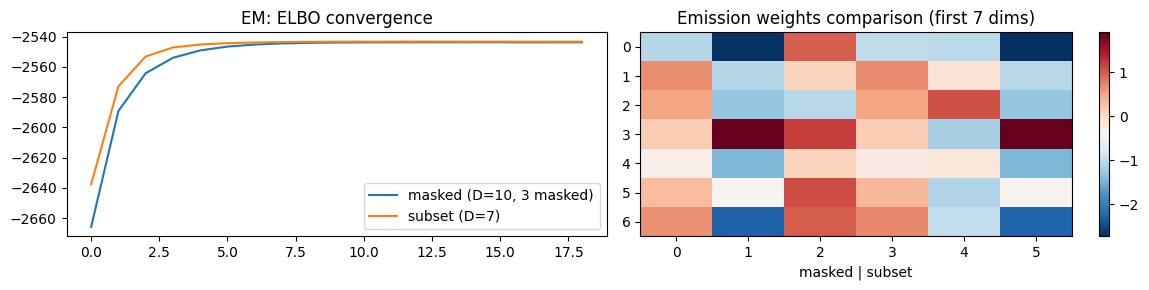

fig, axes = plt.subplots(1, 2, figsize=(12, 3))
axes[0].plot(elbos_masked, label="masked (D=10, 3 masked)")
axes[0].plot(elbos_subset, label="subset (D=7)")
axes[0].set_title("EM: ELBO convergence")
axes[0].legend()

# Compare learned emission weights for the observed dims
H_masked = params_masked.emissions.weights[:7, :K]
H_subset = params_subset.emissions.weights[:, :K]
axes[1].set_title("Emission weights comparison (first 7 dims)")
im = axes[1].imshow(jnp.concatenate([H_masked, H_subset], axis=1), aspect='auto', cmap='RdBu_r')
axes[1].set_xlabel("masked | subset")
plt.colorbar(im, ax=axes[1])
plt.tight_layout()

1.3 FA with random masking (30% missing)

Train FA with all three methods using random per-sample masking.

use_bmr = True

fa_model = BFA(K, D, use_bmr=use_bmr)

# EM
key, subkey = jr.split(key)
init_em, props_em = fa_model.initialize(subkey, variational_bayes=False)
key, subkey = jr.split(key)
params_em_masked, elbos_em_masked = fa_model.fit_em(
    init_em, props_em, Y_fa, subkey, mask=mask_fa, num_iters=num_iters, bmr_start_iter=8
)

fa_model = BFA(K, D, use_bmr=use_bmr)

# VBEM
key, subkey = jr.split(key)
init_vb, props_vb = fa_model.initialize(subkey, variational_bayes=True)
key, subkey = jr.split(key)
params_vb_masked, elbos_vb_masked = fa_model.fit_vbem(
    init_vb, props_vb, Y_fa, subkey, mask=mask_fa, num_iters=num_iters, bmr_start_iter=8
)

fa_model = BFA(K, D, use_bmr=use_bmr)

# Gibbs
key, subkey = jr.split(key)
init_gibbs, props_gibbs = fa_model.initialize(subkey)
key, subkey = jr.split(key)
params_gibbs_masked, elbos_gibbs_masked = fa_model.fit_blocked_gibbs(
    subkey, init_gibbs, props_gibbs, sample_size=20, emissions=Y_fa, mask=mask_fa, burn_in=1
)

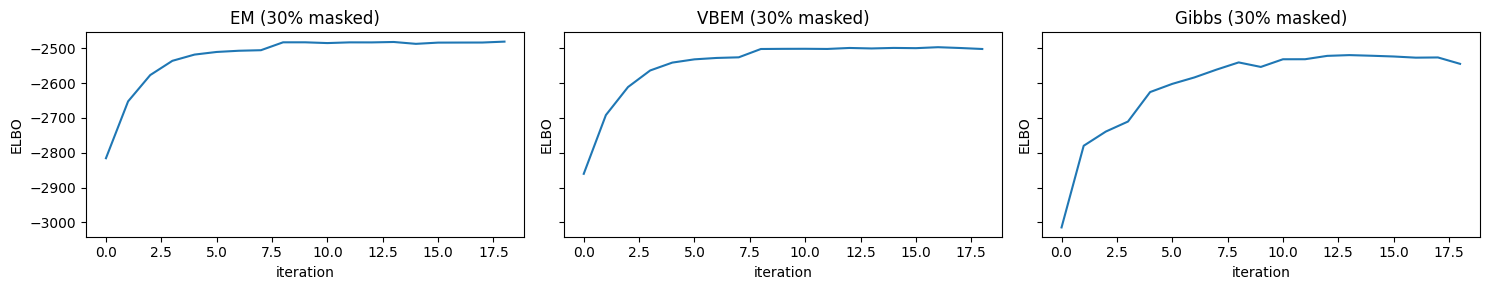

fig, axes = plt.subplots(1, 3, figsize=(15, 3), sharey=True)
axes[0].plot(elbos_em_masked)
axes[0].set_title("EM (30% masked)")
axes[1].plot(elbos_vb_masked)
axes[1].set_title("VBEM (30% masked)")
axes[2].plot(elbos_gibbs_masked)
axes[2].set_title("Gibbs (30% masked)")
for ax in axes:
    ax.set_xlabel("iteration")
    ax.set_ylabel("ELBO")
plt.tight_layout()

Part 2: Dynamic Factor Analysis (DFA)

Generate synthetic DFA time series data.

key = jr.PRNGKey(42)
K_dfa = 2    # latent factors
D_dfa = 10   # observation dimensions
T = 200      # timesteps

# True DFA parameters
A_true = jnp.array([[0.9, 0.0], [0.0, 0.85]])
Q_true = jnp.eye(K_dfa)

key, subkey, subkey2 = jr.split(key, 3)
C_true_dfa = jr.normal(subkey, (D_dfa, K_dfa)) * jr.bernoulli(subkey2, p=0.3, shape=(D_dfa, K_dfa))

key, subkey = jr.split(key)
R_true_dfa = jr.uniform(subkey, (D_dfa,), minval=0.3, maxval=1.0)

# Generate latent states and observations
z = jnp.zeros((T, K_dfa))
Y_dfa = jnp.zeros((T, D_dfa))

key, subkey1, subkey2 = jr.split(key, 3)
z_curr = jr.normal(subkey1, (K_dfa,))
z = z.at[0].set(z_curr)
Y_dfa = Y_dfa.at[0].set(C_true_dfa @ z_curr + jr.normal(subkey2, (D_dfa,)) * jnp.sqrt(R_true_dfa))

for t in range(1, T):
    key, subkey1, subkey2 = jr.split(key, 3)
    z_curr = A_true @ z_curr + jr.normal(subkey1, (K_dfa,))
    z = z.at[t].set(z_curr)
    Y_dfa = Y_dfa.at[t].set(C_true_dfa @ z_curr + jr.normal(subkey2, (D_dfa,)) * jnp.sqrt(R_true_dfa))

print(f"DFA data shape: {Y_dfa.shape}")

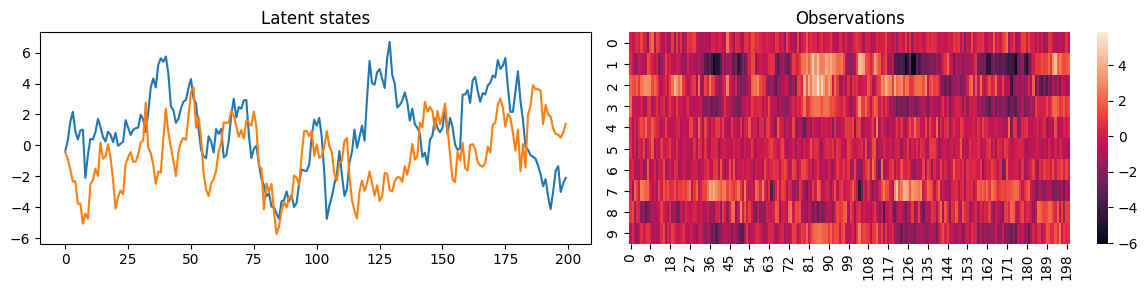

fig, axes = plt.subplots(1, 2, figsize=(12, 3))
axes[0].plot(z)
axes[0].set_title("Latent states")
sns.heatmap(Y_dfa.T, ax=axes[1], cbar=True)
axes[1].set_title("Observations")
plt.tight_layout()

DFA data shape: (200, 10)

2.1 DFA regression test: mask=None vs mask=all-True

num_iters_dfa = 20

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)
all_true_mask = jnp.ones((T, D_dfa), dtype=bool)

# --- EM ---
key, subkey = jr.split(key)
init_em, props_em = dfa_model.initialize(subkey, variational_bayes=False)

key, subkey = jr.split(key)
p_em_none, e_em_none = dfa_model.fit_em(init_em, props_em, Y_dfa, subkey, num_iters=num_iters_dfa)

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)
p_em_all, e_em_all = dfa_model.fit_em(init_em, props_em, Y_dfa, subkey, mask=all_true_mask, num_iters=num_iters_dfa)

print(f"EM: max ELBO diff = {jnp.max(jnp.abs(e_em_none - e_em_all)):.6f}")

# --- VBEM ---
key, subkey = jr.split(key)
init_vb, props_vb = dfa_model.initialize(subkey, variational_bayes=True)

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)
key, subkey = jr.split(key)
p_vb_none, e_vb_none = dfa_model.fit_vbem(init_vb, props_vb, Y_dfa, subkey, num_iters=num_iters_dfa)

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)
p_vb_all, e_vb_all = dfa_model.fit_vbem(init_vb, props_vb, Y_dfa, subkey, mask=all_true_mask, num_iters=num_iters_dfa)

print(f"VBEM: max ELBO diff = {jnp.max(jnp.abs(e_vb_none - e_vb_all)):.6f}")

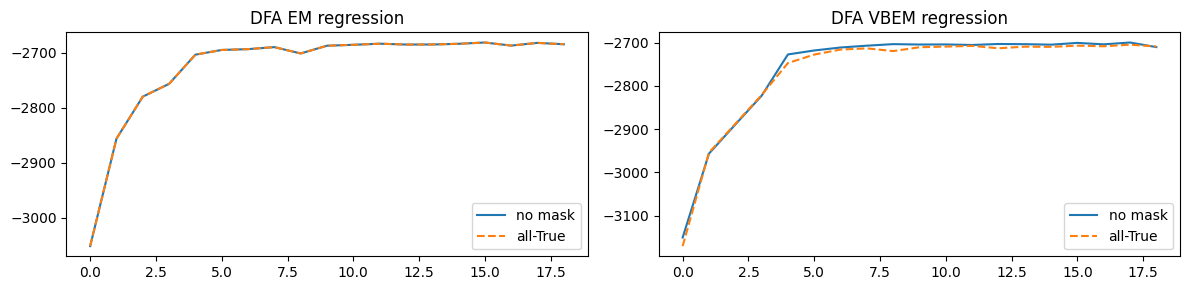

fig, axes = plt.subplots(1, 2, figsize=(12, 3))
axes[0].plot(e_em_none, label="no mask")
axes[0].plot(e_em_all, '--', label="all-True")
axes[0].set_title("DFA EM regression")
axes[0].legend()

axes[1].plot(e_vb_none, label="no mask")
axes[1].plot(e_vb_all, '--', label="all-True")
axes[1].set_title("DFA VBEM regression")
axes[1].legend()
plt.tight_layout()

EM: max ELBO diff = 0.000732
VBEM: max ELBO diff = 19.935547

2.2 DFA with random masking (70% missing)

Train DFA with all three methods using random time-varying masking.

# Random mask: 30% of entries missing
key, subkey = jr.split(key)
mask_dfa = jr.bernoulli(subkey, p=0.3, shape=(T, D_dfa))
print(f"DFA mask shape: {mask_dfa.shape}, fraction observed: {mask_dfa.mean():.2f}")

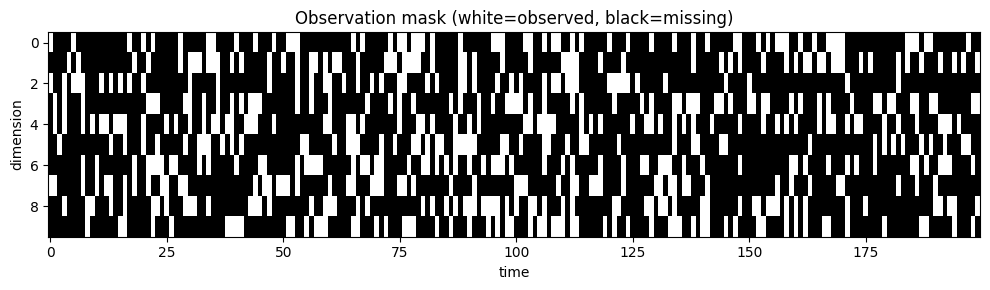

fig, ax = plt.subplots(1, 1, figsize=(10, 3))
ax.imshow(mask_dfa.T, aspect='auto', cmap='gray', interpolation='none')
ax.set_xlabel("time")
ax.set_ylabel("dimension")
ax.set_title("Observation mask (white=observed, black=missing)")
plt.tight_layout()

DFA mask shape: (200, 10), fraction observed: 0.30

num_iters_dfa = 50

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)

# EM with mask
key, subkey = jr.split(key)
init_em, props_em = dfa_model.initialize(subkey, variational_bayes=False)
key, subkey = jr.split(key)
params_dfa_em, elbos_dfa_em = dfa_model.fit_em(
    init_em, props_em, Y_dfa, subkey, mask=mask_dfa, num_iters=num_iters_dfa, bmr_start_iter=8
)

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)

# VBEM with mask
key, subkey = jr.split(key)
init_vb, props_vb = dfa_model.initialize(subkey, variational_bayes=True)
key, subkey = jr.split(key)
params_dfa_vb, elbos_dfa_vb = dfa_model.fit_vbem(
    init_vb, props_vb, Y_dfa, subkey, mask=mask_dfa, num_iters=num_iters_dfa, bmr_start_iter=8
)

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)

# Gibbs with mask
key, subkey = jr.split(key)
init_gibbs, props_gibbs = dfa_model.initialize(subkey)
key, subkey = jr.split(key)
params_dfa_gibbs, elbos_dfa_gibbs = dfa_model.fit_blocked_gibbs(
    subkey, init_gibbs, props_gibbs, sample_size=num_iters_dfa + 1, emissions=Y_dfa, mask=mask_dfa, burn_in=1, bmr_start_iter=9
)

fig, axes = plt.subplots(1, 3, figsize=(15, 3), sharey=True)
axes[0].plot(elbos_dfa_em)
axes[0].set_title("DFA EM (70% masked)")
axes[1].plot(elbos_dfa_vb)
axes[1].set_title("DFA VBEM (70% masked)")
axes[2].plot(elbos_dfa_gibbs)
axes[2].set_title("DFA Gibbs (70% masked)")
for ax in axes:
    ax.set_xlabel("iteration")
    ax.set_ylabel("ELBO")
plt.tight_layout()

2.3 DFA with partial time-varying masking

First half of time: only dims 0-4 observed. Second half: only dims 5-9 observed. This tests that the model can maintain temporal continuity through the latent states even when observation dimensions change completely over time.

# Partial time-varying mask: first half dims 0-4, second half dims 5-9
mask_partial_tv = jnp.zeros((T, D_dfa), dtype=bool)
mask_partial_tv = mask_partial_tv.at[:T//2, :5].set(True)   # first half: dims 0-4
mask_partial_tv = mask_partial_tv.at[T//2:, 5:].set(True)   # second half: dims 5-9

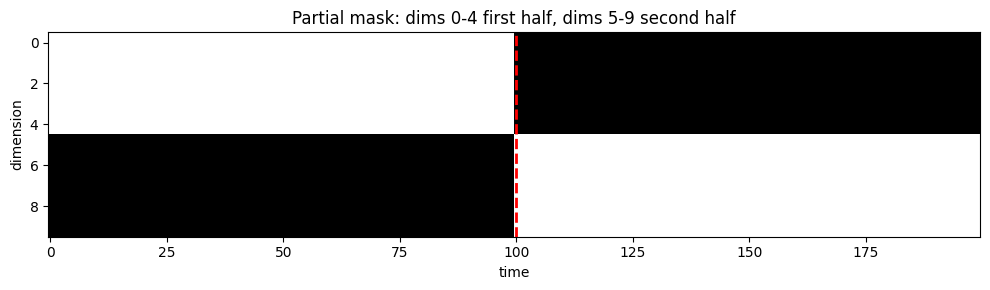

fig, ax = plt.subplots(1, 1, figsize=(10, 3))
ax.imshow(mask_partial_tv.T, aspect='auto', cmap='gray', interpolation='none')
ax.set_xlabel("time")
ax.set_ylabel("dimension")
ax.set_title("Partial mask: dims 0-4 first half, dims 5-9 second half")
ax.axvline(T//2, color='red', linestyle='--', lw=2)
plt.tight_layout()

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)

# EM
key, subkey = jr.split(key)
init_em, props_em = dfa_model.initialize(subkey, variational_bayes=False)
key, subkey = jr.split(key)
params_ptv_em, elbos_ptv_em = dfa_model.fit_em(
    init_em, props_em, Y_dfa, subkey, mask=mask_partial_tv, num_iters=num_iters_dfa, bmr_start_iter=8
)

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)

# VBEM
key, subkey = jr.split(key)
init_vb, props_vb = dfa_model.initialize(subkey, variational_bayes=True)
key, subkey = jr.split(key)
params_ptv_vb, elbos_ptv_vb = dfa_model.fit_vbem(
    init_vb, props_vb, Y_dfa, subkey, mask=mask_partial_tv, num_iters=num_iters_dfa, bmr_start_iter=8
)

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)

# Gibbs
key, subkey = jr.split(key)
init_gibbs, props_gibbs = dfa_model.initialize(subkey)
key, subkey = jr.split(key)
params_ptv_gibbs, elbos_ptv_gibbs = dfa_model.fit_blocked_gibbs(
    subkey, init_gibbs, props_gibbs, sample_size=num_iters + 1, emissions=Y_dfa, mask=mask_partial_tv, burn_in=1, bmr_start_iter=8
)

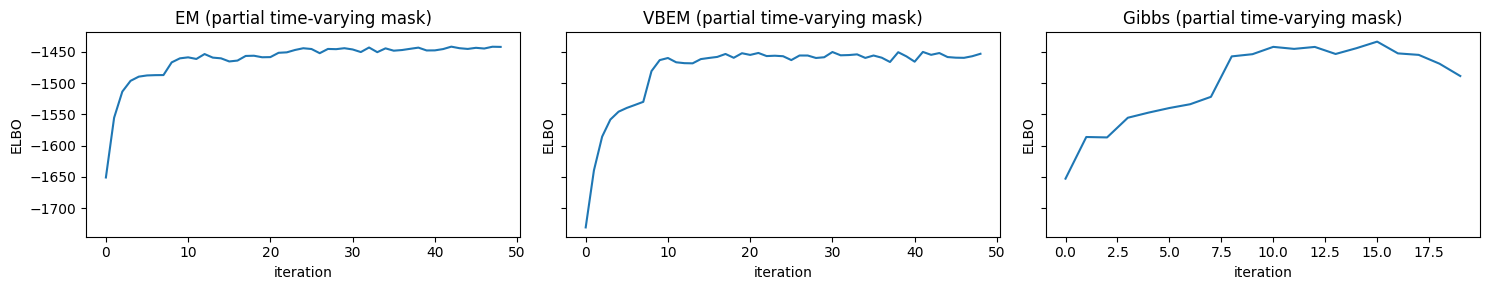

fig, axes = plt.subplots(1, 3, figsize=(15, 3), sharey=True)
axes[0].plot(elbos_ptv_em)
axes[0].set_title("EM (partial time-varying mask)")
axes[1].plot(elbos_ptv_vb)
axes[1].set_title("VBEM (partial time-varying mask)")
axes[2].plot(elbos_ptv_gibbs)
axes[2].set_title("Gibbs (partial time-varying mask)")
for ax in axes:
    ax.set_xlabel("iteration")
    ax.set_ylabel("ELBO")
plt.tight_layout()

2.4 Compare masked vs full DFA training

Show that random masking degrades gracefully compared to full data.

from dynamax.linear_gaussian_ssm import lgssm_smoother

dfa_model = BDFA(K_dfa, D_dfa, use_bmr=True)

# Train full model without mask for comparison
key, subkey = jr.split(key)
init_em_full, props_em_full = dfa_model.initialize(subkey, variational_bayes=True)
key, subkey = jr.split(key)
params_full, elbos_full = dfa_model.fit_vbem(
    init_em_full, props_em_full, Y_dfa, subkey, num_iters=num_iters_dfa, bmr_start_iter=8
)

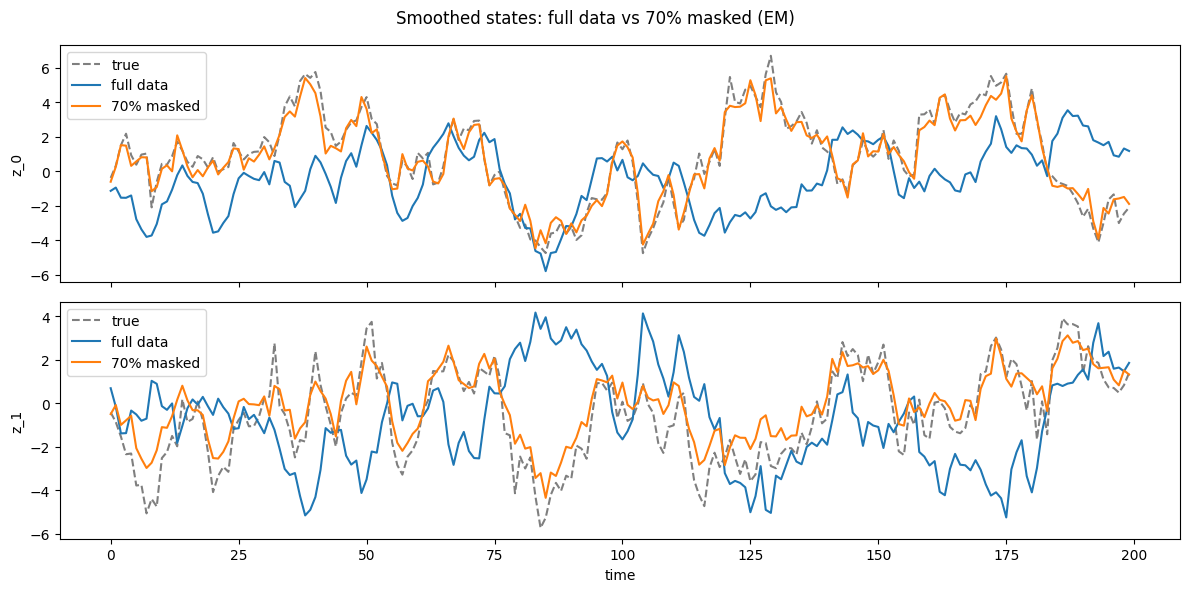

fig, axes = plt.subplots(K_dfa, 1, figsize=(12, 3 * K_dfa), sharex=True)
post_full = lgssm_smoother(params_full, Y_dfa)
post_masked_em = lgssm_smoother(params_dfa_vb, Y_dfa)

for i in range(K_dfa):
    axes[i].plot(z[:, i], '--k', alpha=0.5, label='true')
    axes[i].plot(post_full.smoothed_means[:, i], label='full data')
    axes[i].plot(post_masked_em.smoothed_means[:, i], label='70% masked')
    axes[i].set_ylabel(f'z_{i}')
    axes[i].legend()
axes[-1].set_xlabel('time')
fig.suptitle("Smoothed states: full data vs 70% masked (EM)")
plt.tight_layout()
